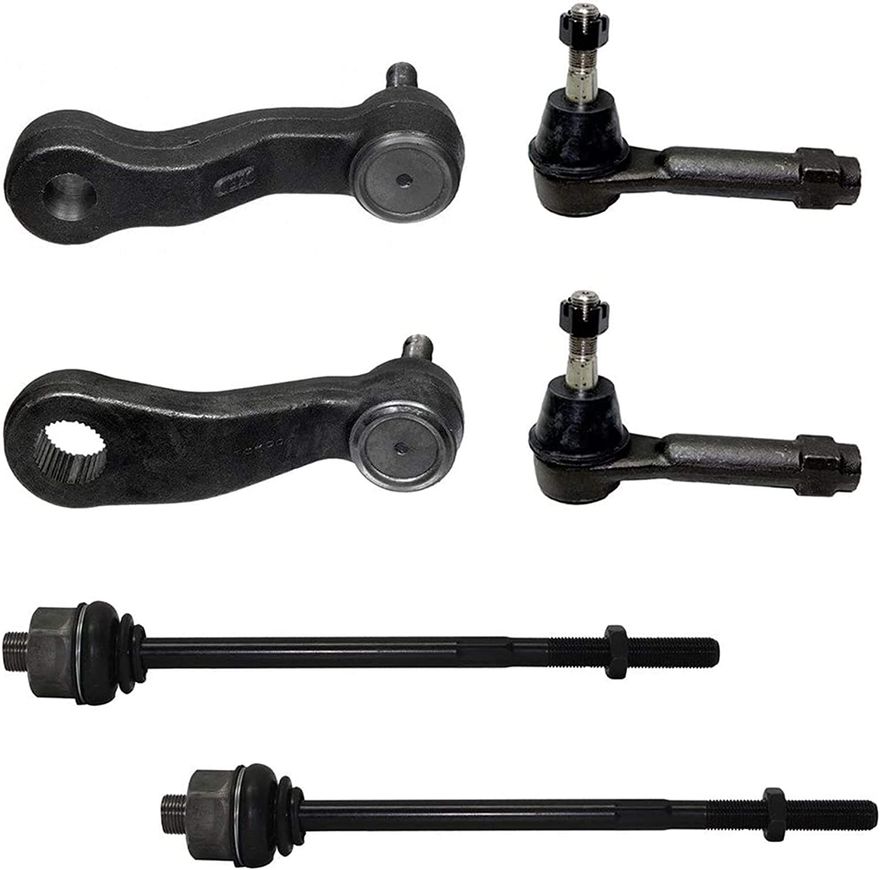

Main Image - Small Suspension Kit

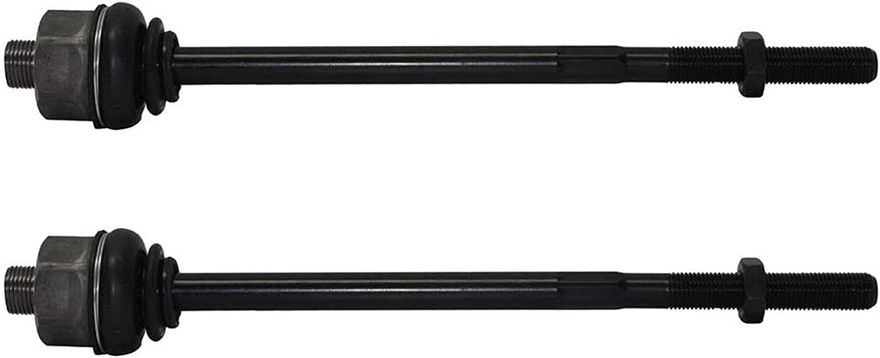

Inner Tie Rod - ES3488 x2

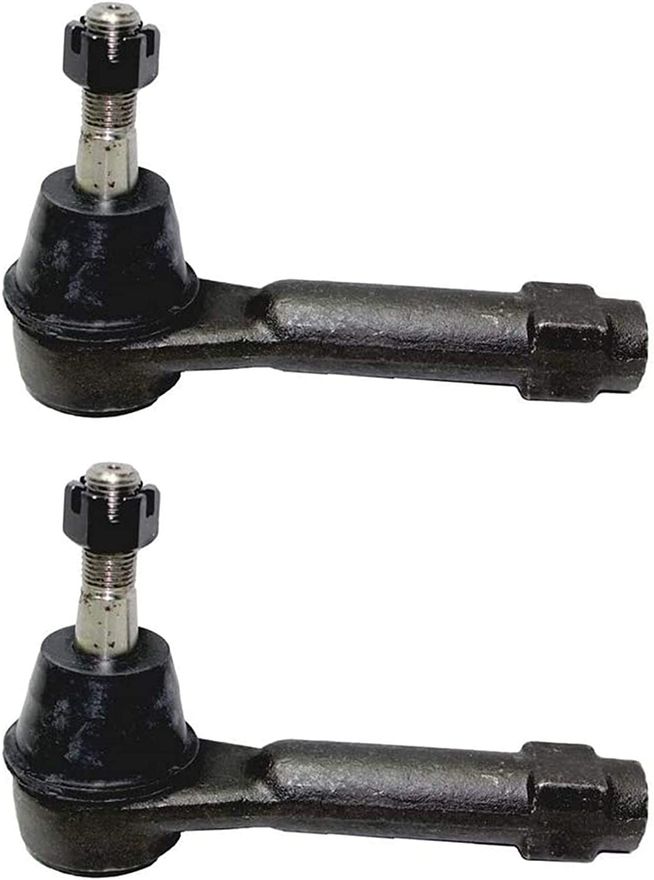

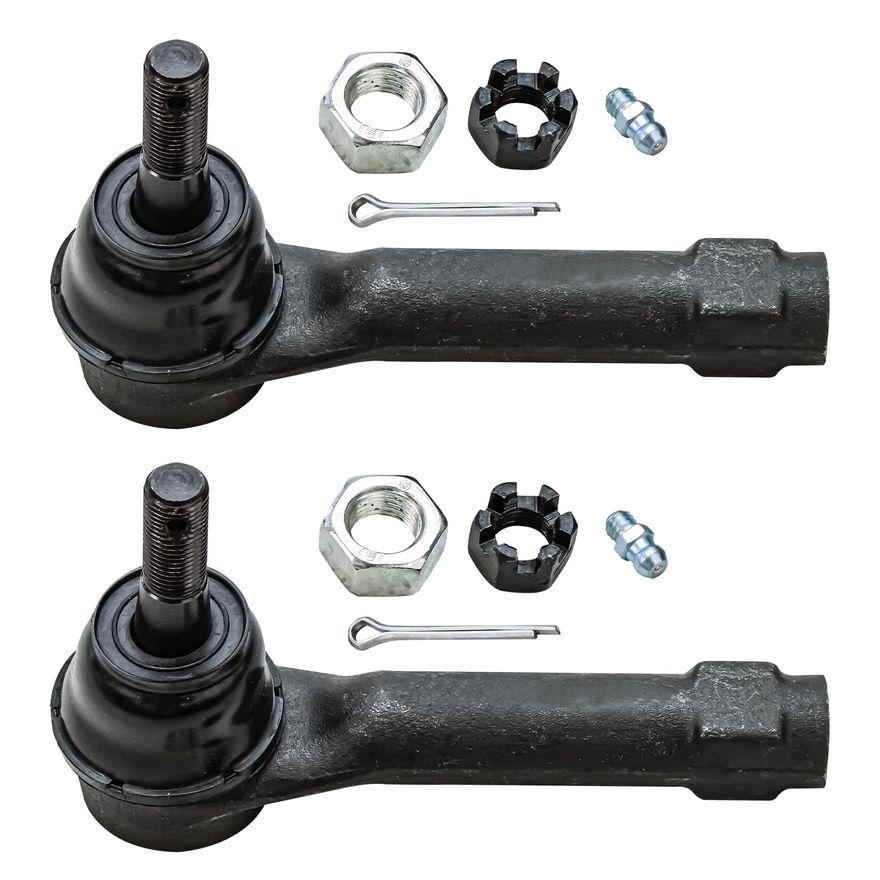

Outer Tie Rod - ES3493 x2

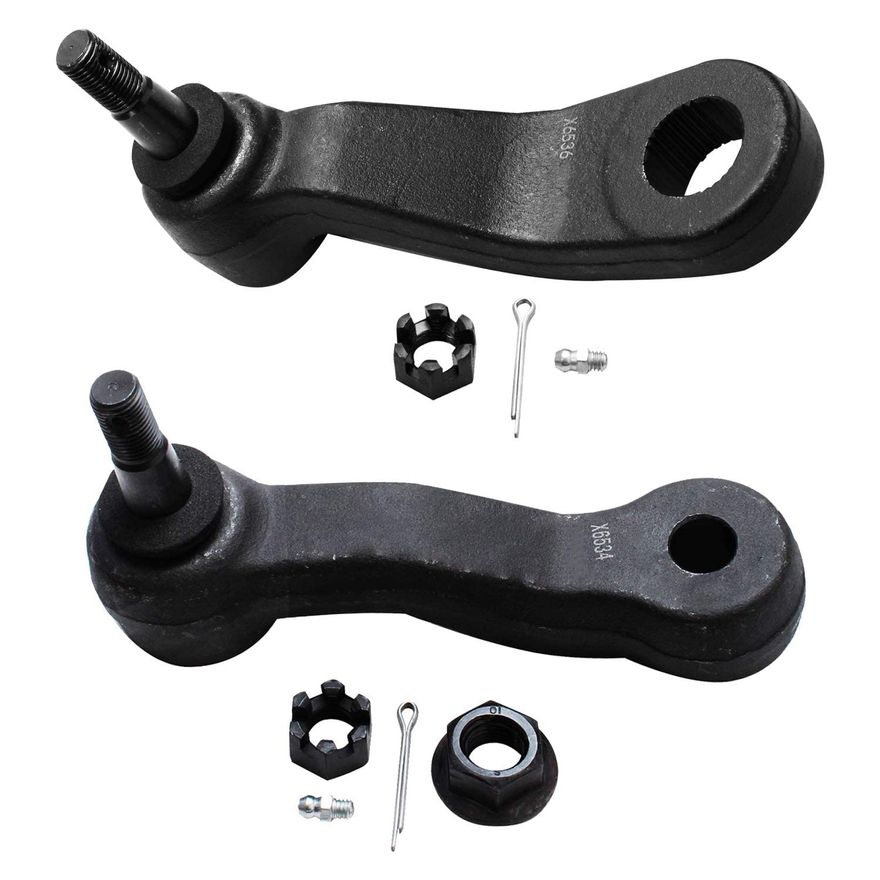

Idler and Pitman Arm - K6534_K6536

6pc Front Tie Rods Pitman Idler Arm Suspension Kit

#80017-6B-DA

$76.83 $72.99

Estimated Delivery Monday 23 March
* Delivery times are estimates and may vary depending on location

Kit Component Parts

Quantity Name Part Number
2 Front Driver or Passenger Side Inner Tie Rod ES3488
2 Front Driver or Passenger Side Outer Tie Rod ES3493

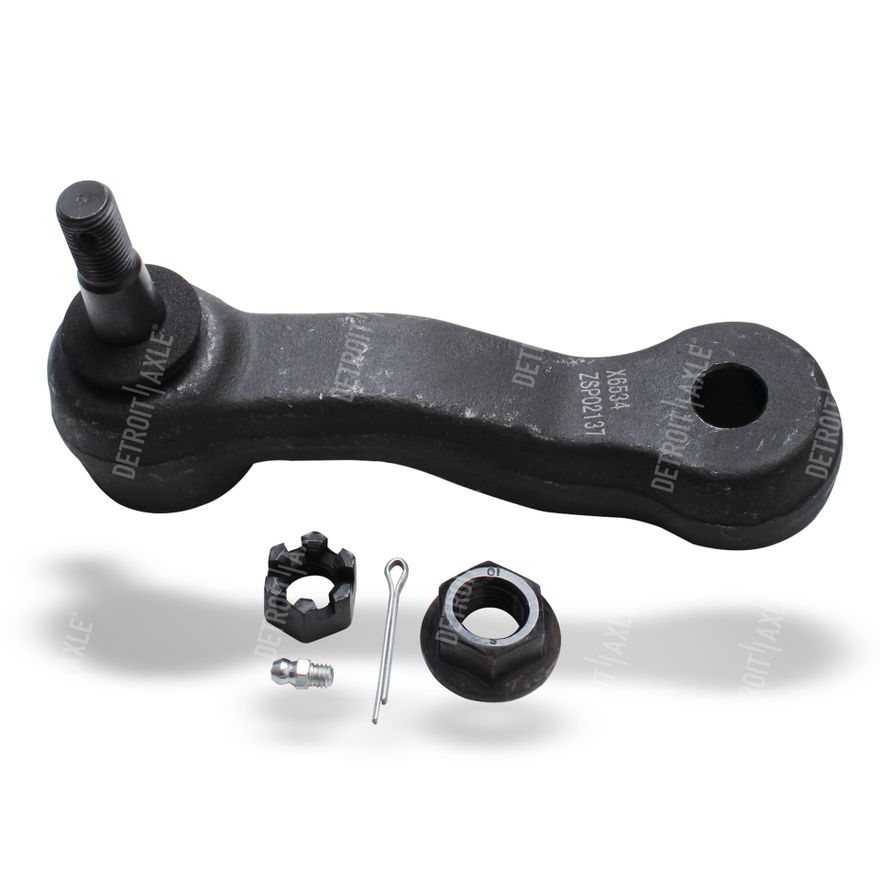

1 Idler Arm K6534

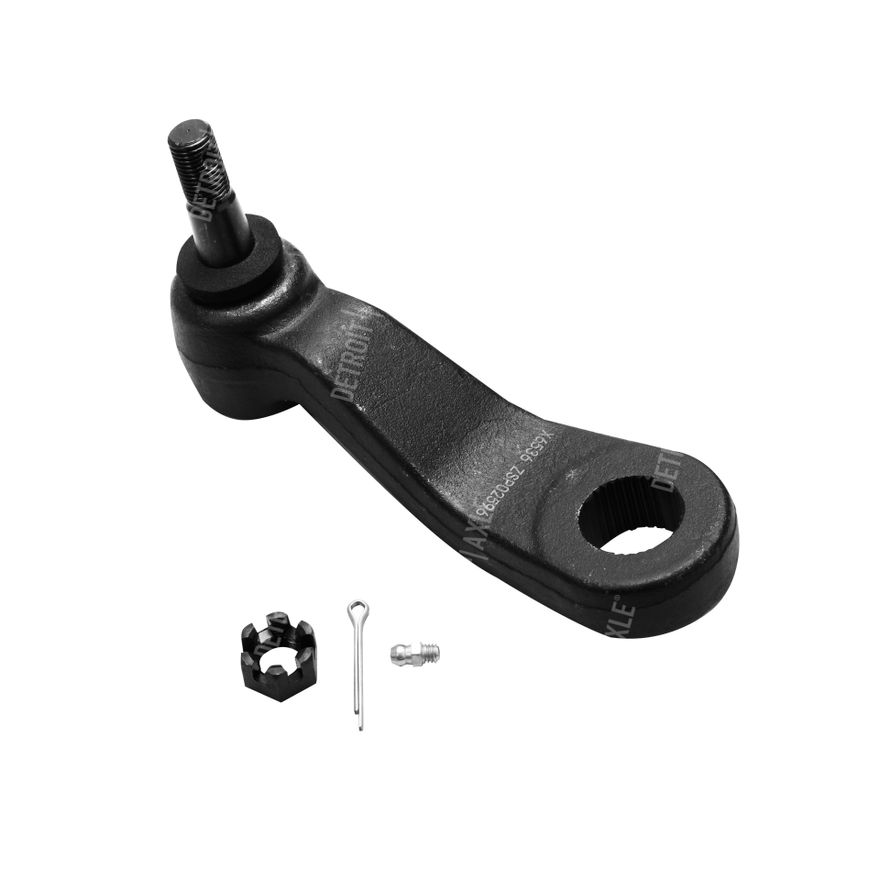

1 Pitman Arm K6536

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 11 lbs
Dimensions: 15 × 4 × 5 in

Details:

  • Built under strict quality control standards; Tested for impact| wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars| trucks| and SUVs

Compatible Vehicles

Cadillac

Escalade

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2002-2006 Cadillac Escalade Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Escalade ESV

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2003-2006 Cadillac Escalade ESV Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Escalade EXT

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2002-2006 Cadillac Escalade EXT Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Chevrolet

Avalanche 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2002-2006 Chevrolet Avalanche 1500 Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002 Chevrolet Avalanche 1500 LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002 Chevrolet Avalanche 1500 LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2003 Chevrolet Avalanche 1500 North Face 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2003 Chevrolet Avalanche 1500 On Road Edition 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2006 Chevrolet Avalanche 1500 Z71 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2003 Chevrolet Avalanche 1500 WBH 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2004-2006 Chevrolet Avalanche 1500 Z66 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2005-2006 Chevrolet Avalanche 1500 LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2005-2006 Chevrolet Avalanche 1500 LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Silverado 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
1999-2005 Chevrolet Silverado 1500 Base Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
1999-2006 Chevrolet Silverado 1500 LS Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
1999-2006 Chevrolet Silverado 1500 LT Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2006 Chevrolet Silverado 1500 WT Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2004-2006 Chevrolet Silverado 1500 Hybrid Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2004-2005 Chevrolet Silverado 1500 Z71 Off-Road Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Suburban 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2000-2006 Chevrolet Suburban 1500 Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000-2006 Chevrolet Suburban 1500 LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000-2006 Chevrolet Suburban 1500 LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2006 Chevrolet Suburban 1500 Z71 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 Chevrolet Suburban 1500 LTZ 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Tahoe

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2000 Chevrolet Tahoe Base 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 Chevrolet Tahoe Base 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 Chevrolet Tahoe LS 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 Chevrolet Tahoe LS 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 Chevrolet Tahoe LT 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 Chevrolet Tahoe LT 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001 Chevrolet Tahoe Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 Chevrolet Tahoe LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 Chevrolet Tahoe LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2006 Chevrolet Tahoe Z71 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 Chevrolet Tahoe Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

GMC

Sierra 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
1999-2003 GMC Sierra 1500 SL Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
1999-2006 GMC Sierra 1500 SLE Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
1999-2006 GMC Sierra 1500 SLT Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001 GMC Sierra 1500 C3 Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2005 GMC Sierra 1500 Base Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002 GMC Sierra 1500 HT Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2002-2006 GMC Sierra 1500 WT Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2005-2006 GMC Sierra 1500 Hybrid Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 GMC Sierra 1500 Denali Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 GMC Sierra 1500 SL Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Yukon

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2000 GMC Yukon SLE 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 GMC Yukon SLE 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 GMC Yukon SLT 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000 GMC Yukon SLT 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 GMC Yukon Denali 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 GMC Yukon SLE 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 GMC Yukon SLT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 GMC Yukon SL 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Yukon XL 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Steering Type Liter Note
2000-2006 GMC Yukon XL 1500 SLE 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2000-2006 GMC Yukon XL 1500 SLT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2001-2006 GMC Yukon XL 1500 Denali 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink
2006 GMC Yukon XL 1500 SL 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral Links Pitman Arms Sway Bar Links Tie Rod Ends Other […]
