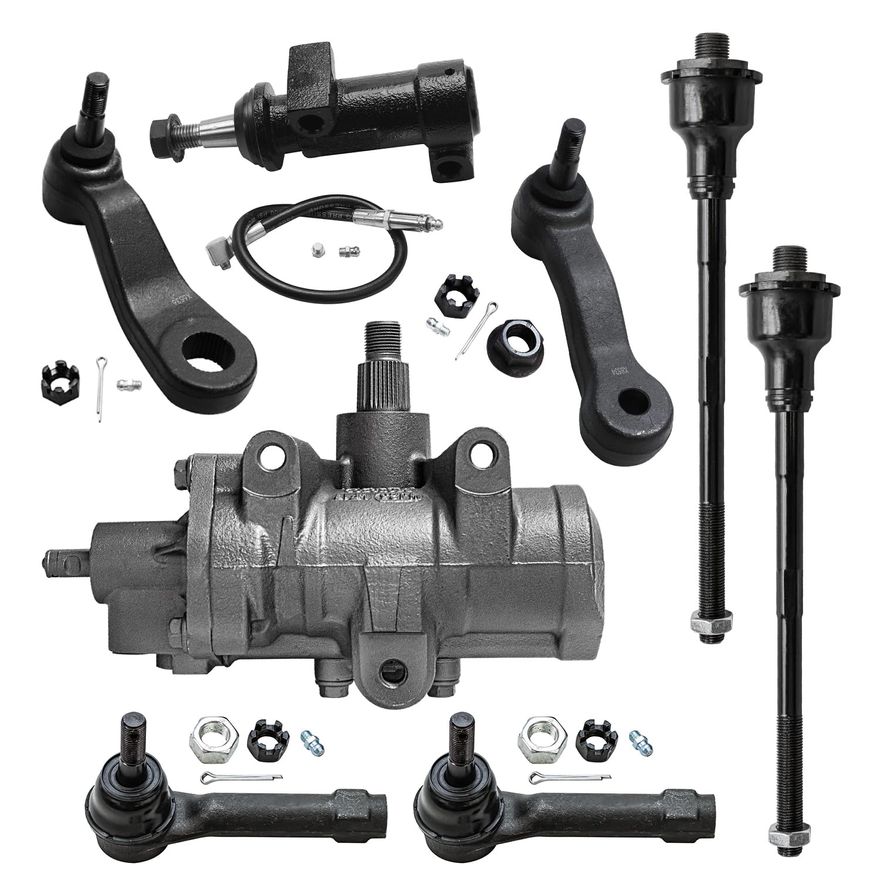

Main Image - Gear Box Kit

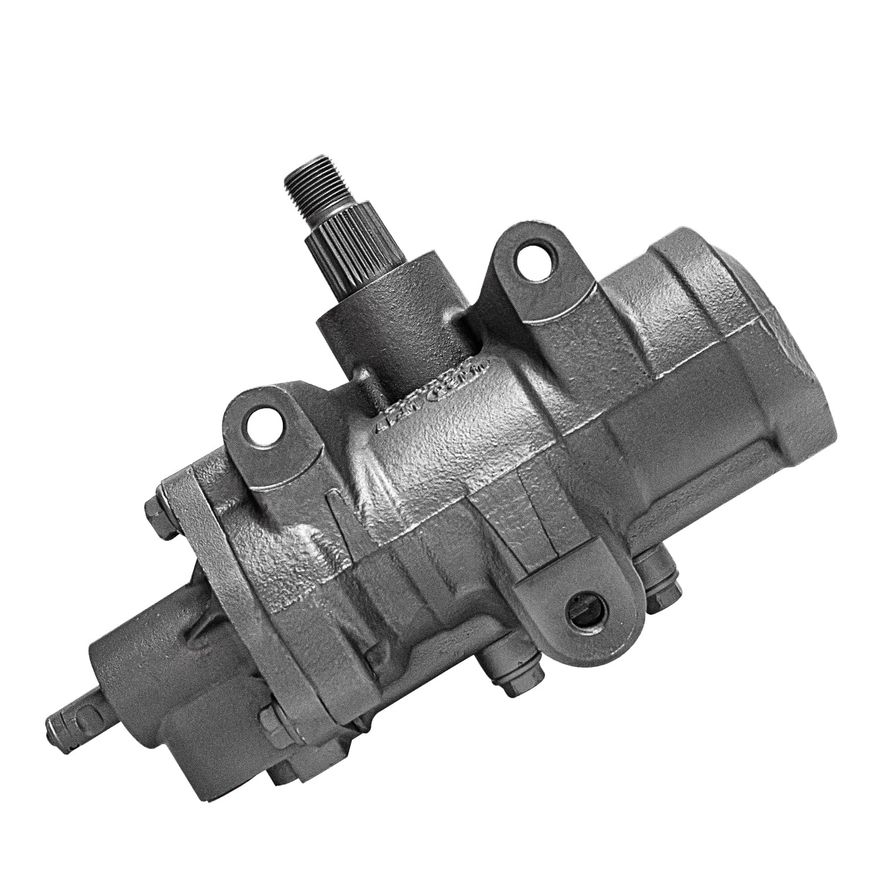

Gear Box - 1419GB

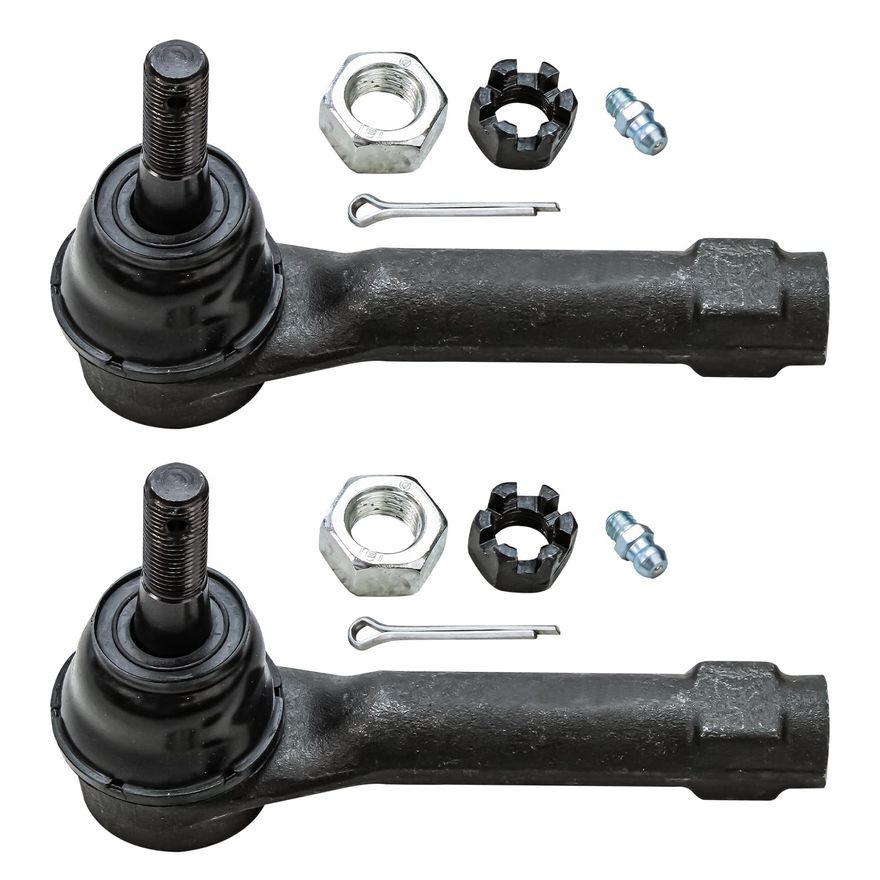

Front Outer Tie Rods - ES3493 x2

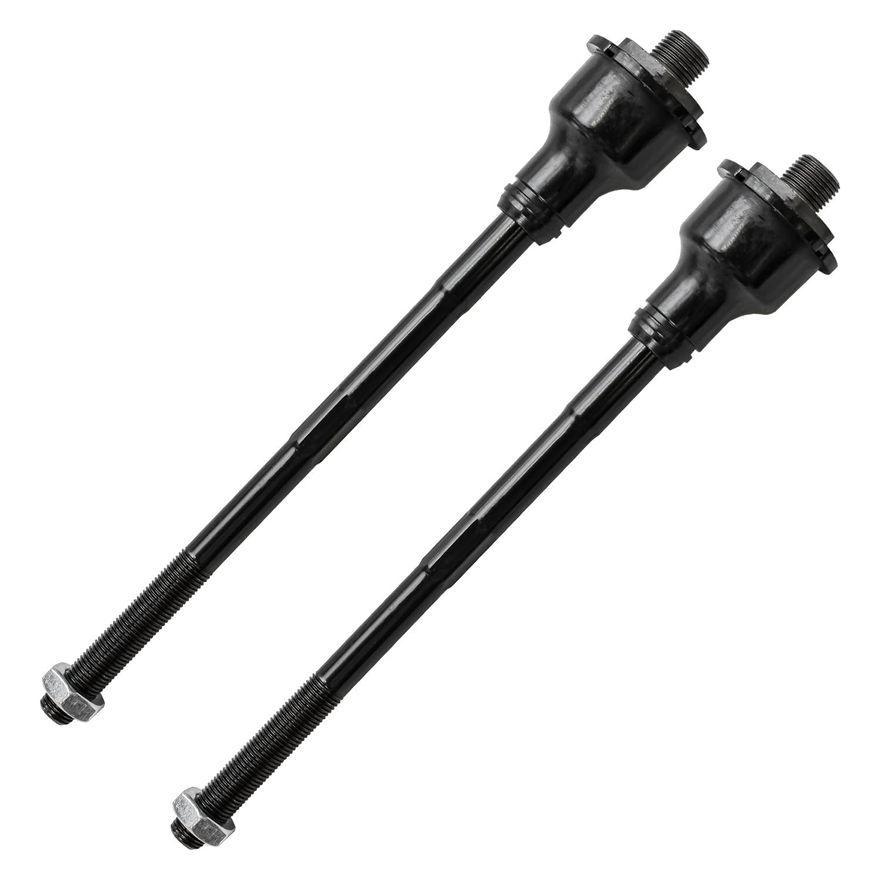

Front Inner Tie Rods - ES3488 x2

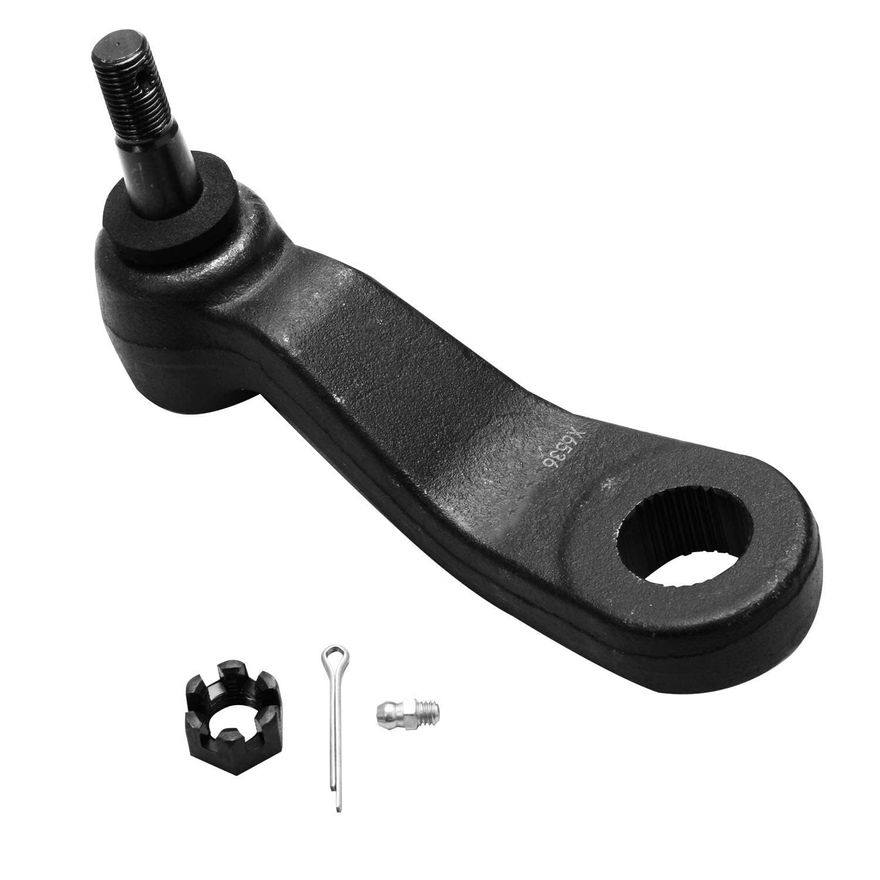

Front Pitman Arm - K6536

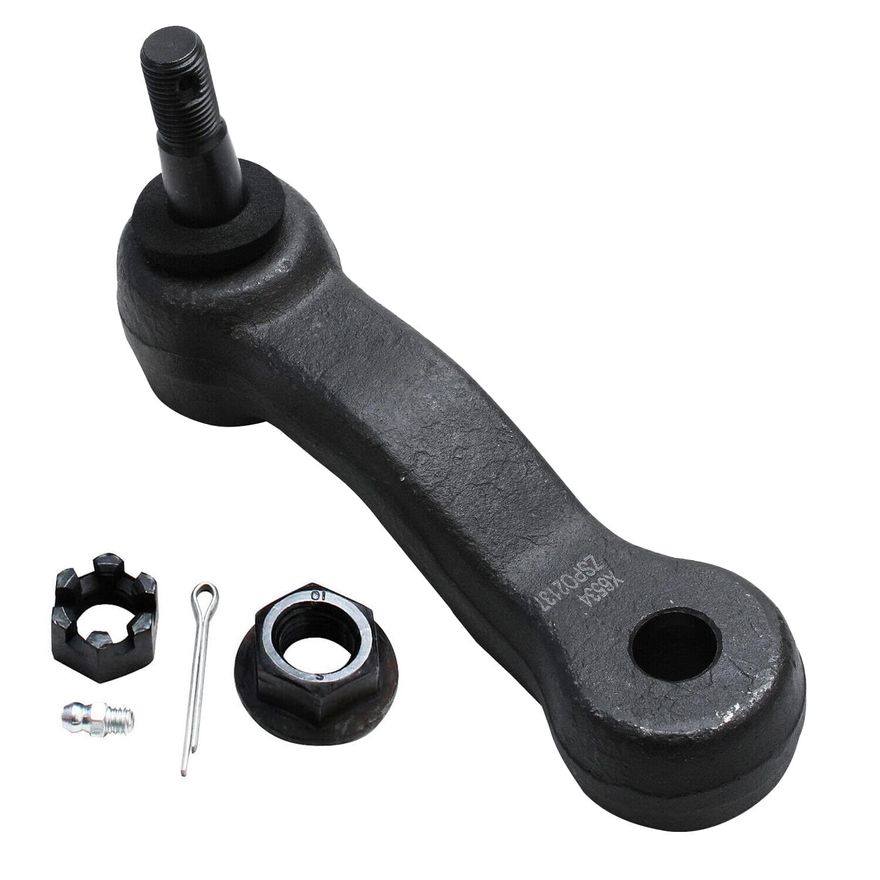

Front Idler Arm - K6534
Front Idler Arm Bracket - K6723

8pc Front Gear Box Idler Pitman Arms Tie Rods Suspension Kit

#GBK-006

$400.67 $380.64

Estimated Delivery Wednesday 5 August
* Delivery times are estimates and may vary depending on location

Kit Component Parts

Quantity Name Part Number
1 Gear Box 1419GB
2 Front Driver or Passenger Side Inner Tie Rod ES3488
2 Front Driver or Passenger Side Outer Tie Rod ES3493
1 Idler Arm K6534
1 Pitman Arm K6536
1 Idler Arm Bracket K6723

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 46 lbs
Dimensions: 20 × 10 × 16 in

Details:

  • To Activate your Lifetime Warranty| you must send in your core unit. Call us when you order to get a return shipping label for your old unit
  • Built under strict quality control standards; Tested for impact| wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility

Compatible Vehicles

Cadillac

Escalade

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2002-2006 Cadillac Escalade Base RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Chevrolet

Avalanche 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2002-2005 Chevrolet Avalanche 1500 Base RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002 Chevrolet Avalanche 1500 LS RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002 Chevrolet Avalanche 1500 LT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002-2003 Chevrolet Avalanche 1500 On Road Edition RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 Chevrolet Avalanche 1500 WBH RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Avalanche 1500 Z66 RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2005-2006 Chevrolet Avalanche 1500 LS RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2005-2006 Chevrolet Avalanche 1500 LT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Silverado 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
1999-2000 Chevrolet Silverado 1500 Base 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
1999-2000 Chevrolet Silverado 1500 LS 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
1999-2000 Chevrolet Silverado 1500 LT 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 Chevrolet Silverado 1500 Base 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 Chevrolet Silverado 1500 LS 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 Chevrolet Silverado 1500 LT 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002-2003 Chevrolet Silverado 1500 WT 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 Base 4WD Gear 4.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 Base 4WD Gear 4.8 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 Base 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 Hybrid 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 LS 4WD Gear 4.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 LS 4WD Gear 4.8 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 LS 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 LT 4WD Gear 4.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 LT 4WD Gear 4.8 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 LT 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 WT 4WD Gear 4.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 WT 4WD Gear 4.8 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Silverado 1500 WT 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 Z71 Off-Road 4WD Gear 4.8 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 Chevrolet Silverado 1500 Z71 Off-Road 4WD Gear 5.3 with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Suburban 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2000-2003 Chevrolet Suburban 1500 Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000-2003 Chevrolet Suburban 1500 LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000-2003 Chevrolet Suburban 1500 LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002-2003 Chevrolet Suburban 1500 Z71 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Suburban 1500 Base RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Suburban 1500 LS RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Suburban 1500 LT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 Chevrolet Suburban 1500 LTZ 6.0 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 Chevrolet Suburban 1500 Z71 RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Tahoe

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2000 Chevrolet Tahoe Base 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 Chevrolet Tahoe Base 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 Chevrolet Tahoe LS 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 Chevrolet Tahoe LS 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 Chevrolet Tahoe LT 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 Chevrolet Tahoe LT 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001 Chevrolet Tahoe Base 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 Chevrolet Tahoe LS 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 Chevrolet Tahoe LT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002 Chevrolet Tahoe Z71 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 Chevrolet Tahoe LS without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 Chevrolet Tahoe LT without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 Chevrolet Tahoe Z71 without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Tahoe LS RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 Chevrolet Tahoe LT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 Chevrolet Tahoe Base RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 Chevrolet Tahoe Z71 RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

GMC

Sierra 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
1999-2000 GMC Sierra 1500 SL 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
1999-2000 GMC Sierra 1500 SLE 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
1999-2000 GMC Sierra 1500 SLT 4WD Gear 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001 GMC Sierra 1500 C3 AWD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 GMC Sierra 1500 SL 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 GMC Sierra 1500 SLE 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2003 GMC Sierra 1500 SLT 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002-2003 GMC Sierra 1500 Base 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002 GMC Sierra 1500 HT 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2002-2003 GMC Sierra 1500 WT 4WD Gear without Luxury Edition Package (Y91); without Sport Package (B4U); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2005 GMC Sierra 1500 Base 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 GMC Sierra 1500 SLE 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 GMC Sierra 1500 SLT 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2004-2006 GMC Sierra 1500 WT 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2005-2006 GMC Sierra 1500 Hybrid 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 GMC Sierra 1500 Denali AWD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 GMC Sierra 1500 SL 4WD Gear with 16.00 inch (406mm) or 17.00 inch (432mm) Wheels; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Yukon

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2000 GMC Yukon SLE 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 GMC Yukon SLE 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 GMC Yukon SLT 4.8 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000 GMC Yukon SLT 5.3 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 GMC Yukon Denali 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 GMC Yukon SLE 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 GMC Yukon SLT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon Denali AWD without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon SLE 4WD without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003-2006 GMC Yukon SLE RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon SLT 4WD without Luxury Edition Package (Y91); without Off Road Appearance Package (BPH); 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003-2006 GMC Yukon SLT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 GMC Yukon SL RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Yukon XL 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Steering Type Liter Note
2000-2002 GMC Yukon XL 1500 SLE 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2000-2002 GMC Yukon XL 1500 SLT 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2001-2002 GMC Yukon XL 1500 Denali 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon XL 1500 Denali AWD except Mexico Built; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon XL 1500 SLE 4WD except Mexico Built; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003-2006 GMC Yukon XL 1500 SLE RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003 GMC Yukon XL 1500 SLT 4WD except Mexico Built; 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2003-2006 GMC Yukon XL 1500 SLT RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing
2006 GMC Yukon XL 1500 SL RWD 4-Groove Pitman Arm; 0.71 inch (18mm) Thread at Centerlink; Gearbox Has 3-Bolt Valve Housing

Warranty

LIFETIME WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS
