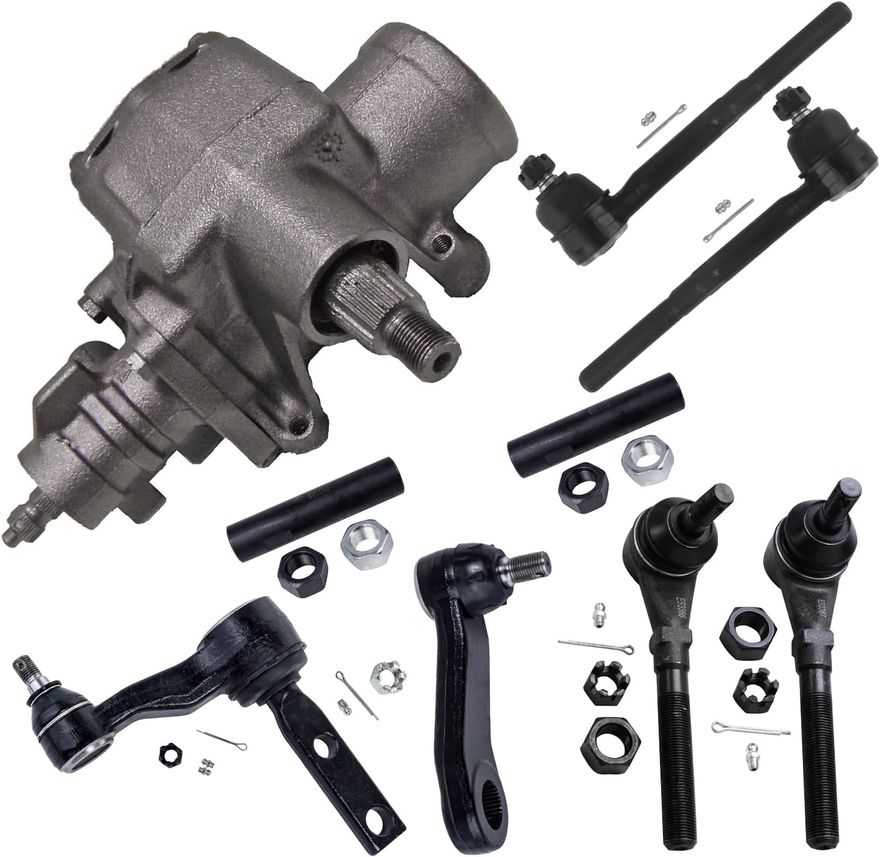

Main Image - Gear Box Pitman & Idler Arms Kit

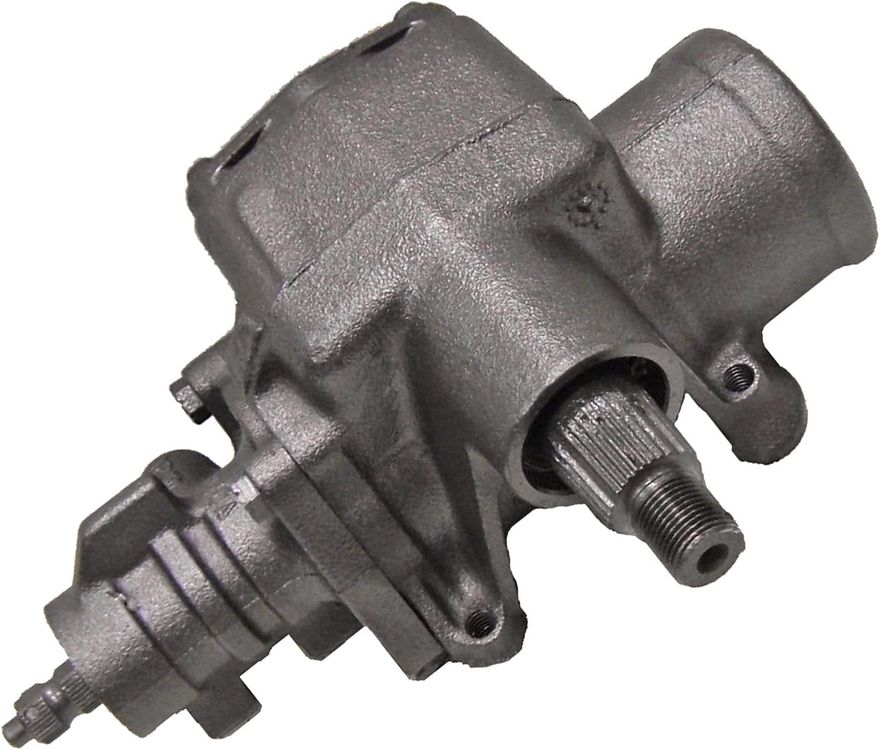

Gear Box - 1600GB

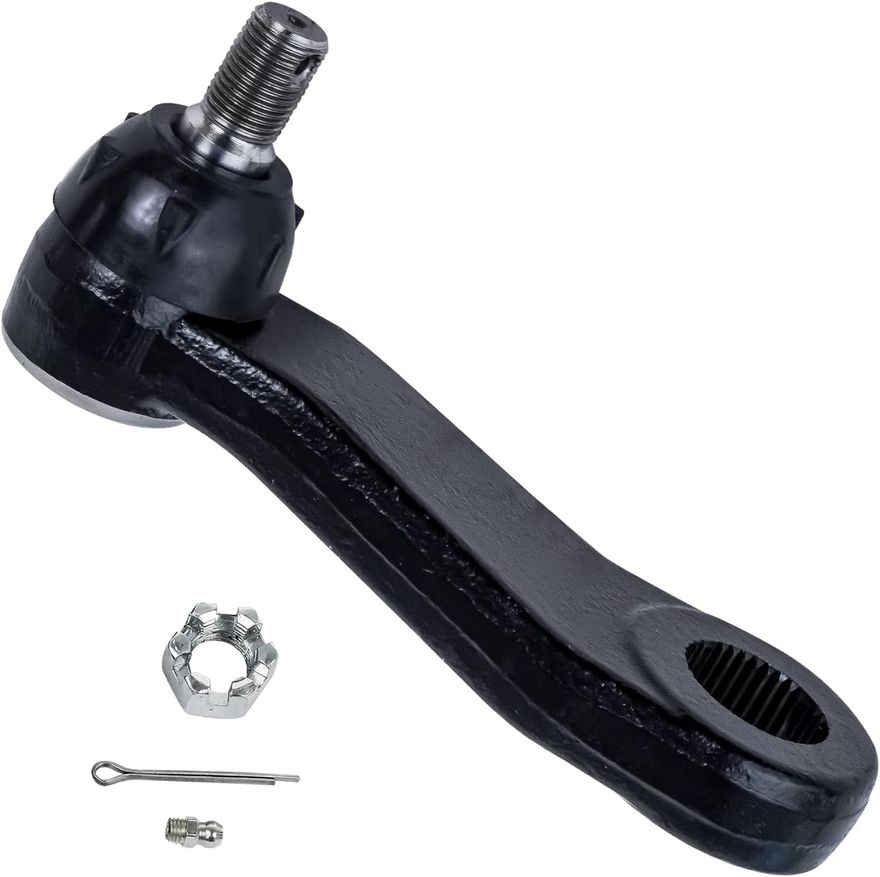

Pitman Arm - K8700
Idler Arm - K8739

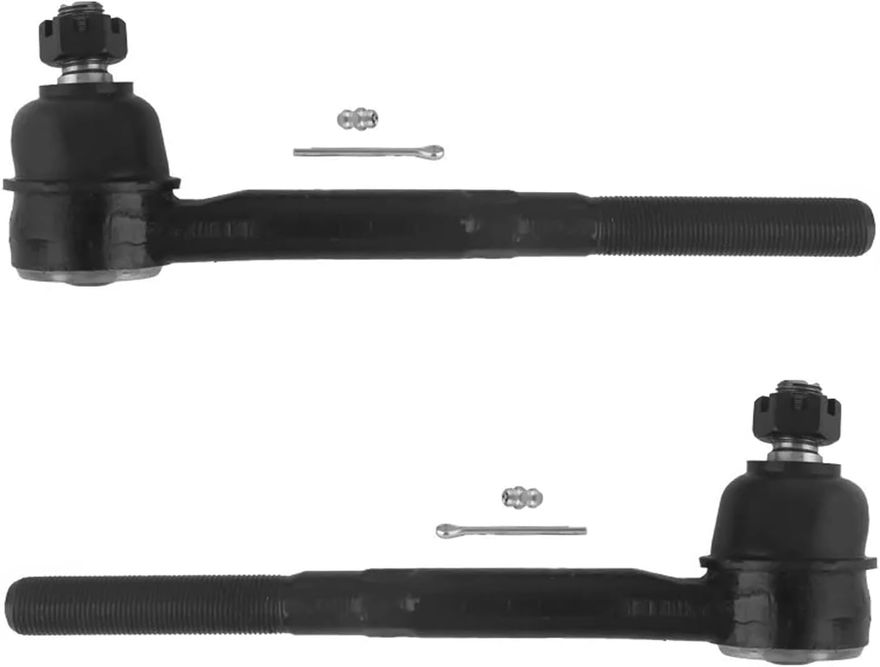

Front Inner Tie Rod - ES3364_ES3365

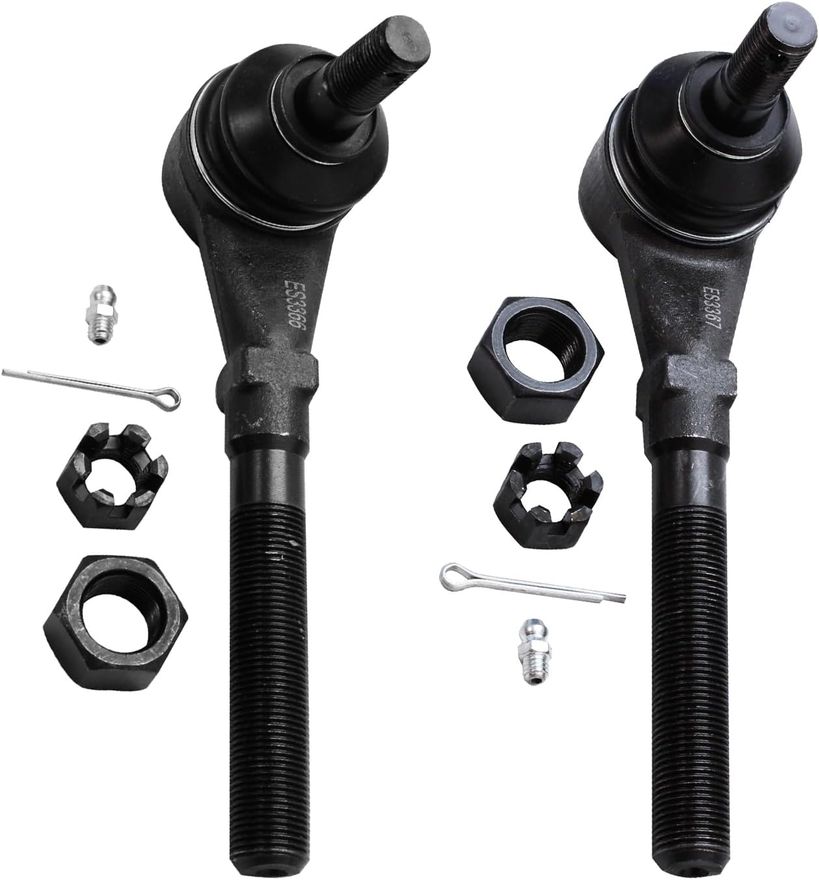

Front Outer Tie Rod - ES3366_ES3367

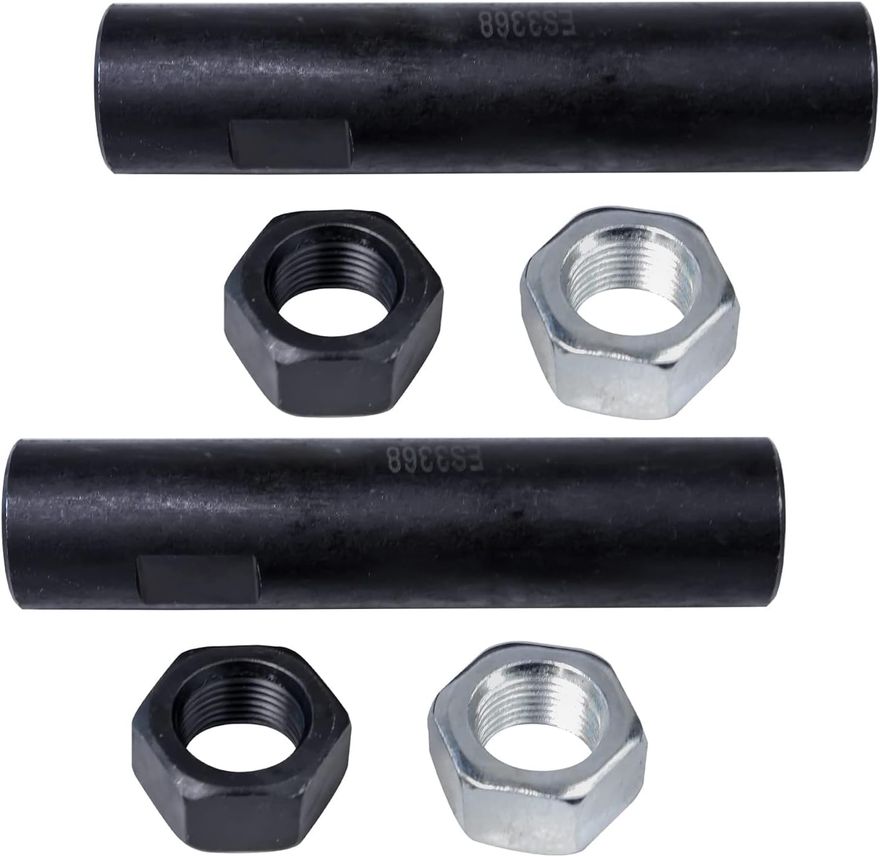

Front Tie Rod Adjusting Sleeve - ES3368 x2

9pc Gear Box Pitman & Idler Arms Tie Rods Adjusting Sleeves Suspension Kit

#9GS472948

$319.62 $303.64

Estimated Delivery Wednesday 4 March
* Delivery times are estimates and may vary depending on location

Kit Component Parts

Quantity Name Part Number
1 Gear Box 1600GB
1 Front Passenger Side Inner Tie Rod ES3364
1 Front Driver Side Inner Tie Rod ES3365
1 Front Driver Side Outer Tie Rod ES3366
1 Front Passenger Side Outer Tie Rod ES3367
2 Front Driver or Passenger Side Tie Rod Adjusting Sleeve ES3368
1 Pitman Arm K8700
1 Idler Arm K8739

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 48 lbs
Dimensions: 10 × 12 × 8 in

Details:

  • Built under strict quality control standards; Tested for impact, wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • To Activate your Lifetime Warranty, you must send in your core unit. Call us when you order to get a return shipping label for your old unit

Compatible Vehicles

Ford

Expedition

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2002 Ford Expedition Eddie Bauer RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
2001-2002 Ford Expedition XLT RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)

F-150

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
1997-2000 Ford F-150 Base RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1997-2003 Ford F-150 Lariat RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1997-2003 Ford F-150 XL RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1997-2003 Ford F-150 XLT RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1998-1999 Ford F-150 Austera RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1999-2003 Ford F-150 Lightning RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
2000-2003 Ford F-150 Harley-Davidson Edition RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
2001-2003 Ford F-150 King Ranch RWD 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)

F-250

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
1998-1999 Ford F-250 Base RWD Light Duty; Under 8500lb GVW; 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1998-1999 Ford F-250 Lariat RWD Light Duty; Under 8500lb GVW; 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1998-1999 Ford F-250 XL RWD Light Duty; Under 8500lb GVW; 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1998-1999 Ford F-250 XLT RWD Light Duty; Under 8500lb GVW; 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)
1998-1999 Ford F-250 XLT VIP RWD Light Duty; Under 8500lb GVW; 2.48 inch (63mm) Bolt Pattern; without Electronic Variable Orifice (EVO)

Warranty

LIFETIME WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by Lifetime Warranty CV Axles (Remanufactured): CV Axle Shaft Assemblies rebuilt from OEM Gear Boxes (Remanufactured): Gear Box Assemblies rebuilt from OEM Racks & Pinions (Remanufactured): Rack & Pinion Assemblies rebuilt from OEM
