Main Image - Front Tie Rods Ball Joints
Gear Box - 1422GB
Front Outer Tie Rod - ES3493 x2
Front Inner Tie Rod - ES3488 x2

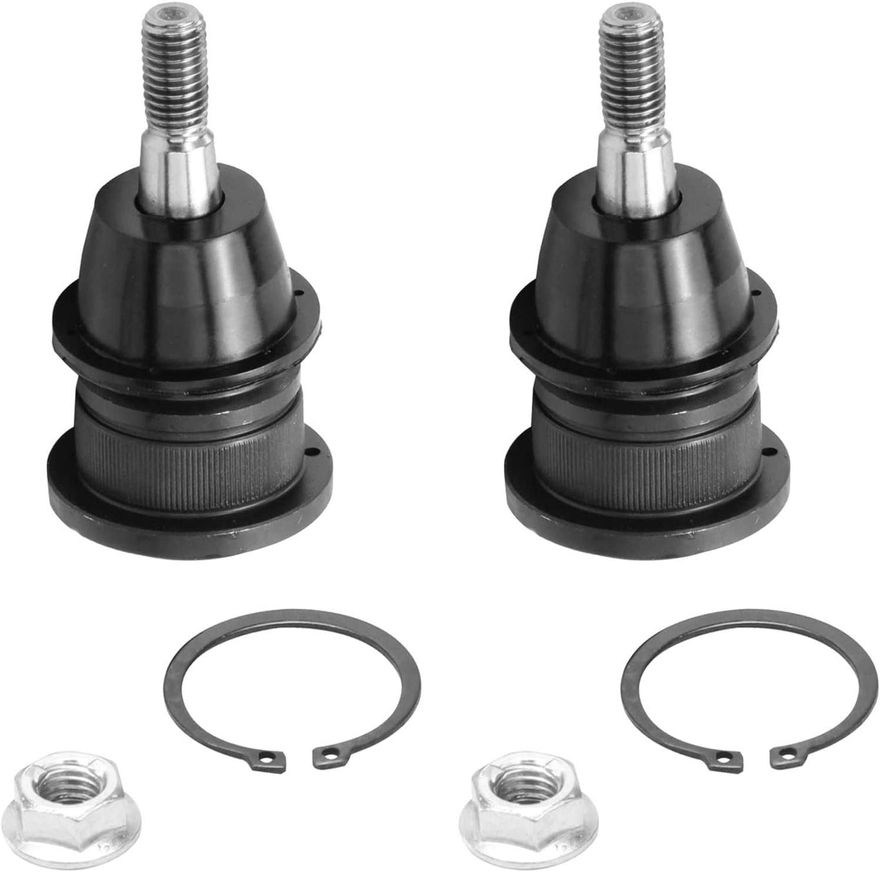

Front Upper Ball Joint - K6540 x2
Front Lower Ball Joint - K6541 x2
Front Sway Bar Link - K80631 x2

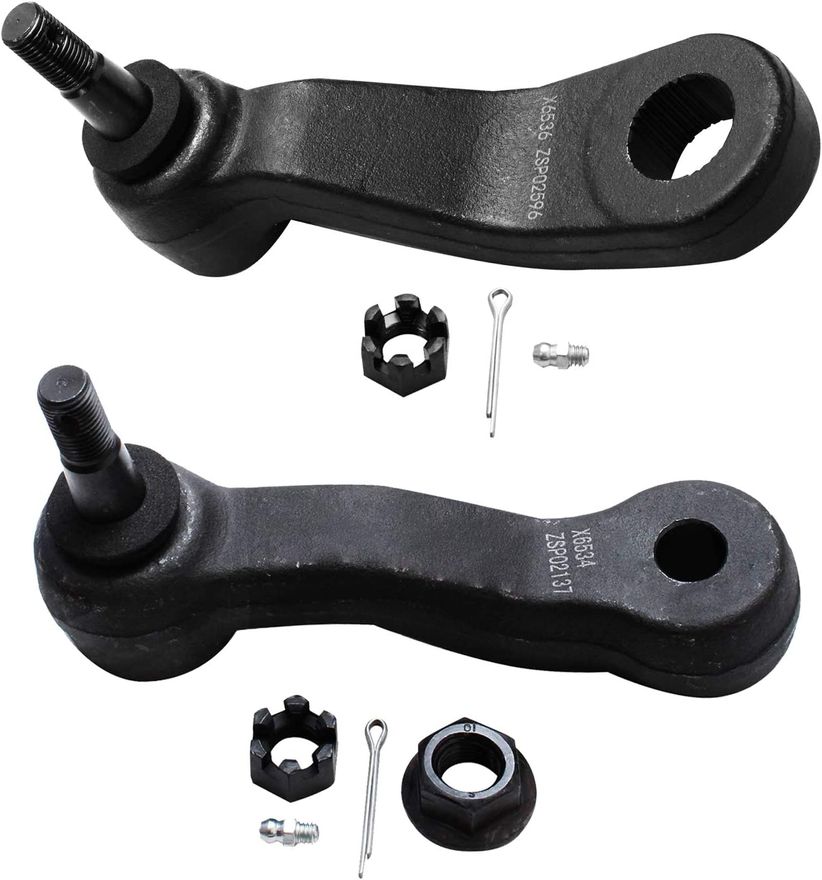

Idler Arm Pitman Arm - K6534_K6536

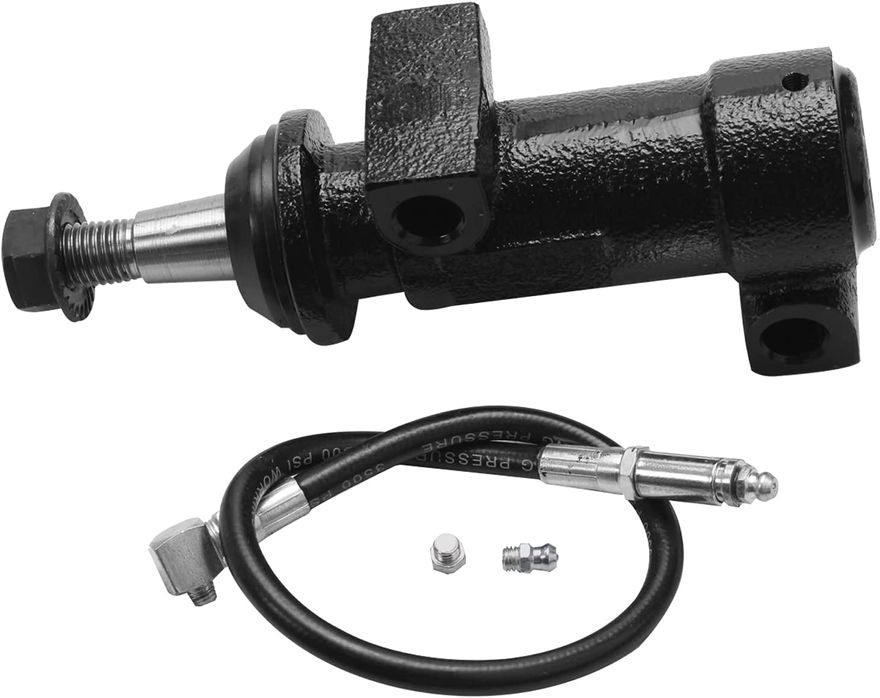

Front Idler Arm Bracket - K6723

14pc Front Tie Rods Upper Lower Ball Joints Sway Bar Links Suspension Kit

#14GS3200078

$478.31 $454.39

Estimated Delivery Sunday 30 November

Kit Component Parts

Quantity Name Part Number
1 Gear Box 1422GB
2 Front Driver or Passenger Side Inner Tie Rod ES3488
2 Front Driver or Passenger Side Outer Tie Rod ES3493
1 Idler Arm K6534
1 Pitman Arm K6536
2 Front Driver or Passenger Side Upper Ball Joint K6540
2 Front Driver or Passenger Side Lower Ball Joint K6541
1 Idler Arm Bracket K6723
2 Front Driver or Passenger Side Sway Bar Link K80631

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 53 lbs
Dimensions: 12 × 10 × 8 in

Details:

  • Built under strict quality control standards; Tested for impact| wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • To Activate your Lifetime Warranty| you must send in your core unit. Call us when you order to get a return shipping label for your old unit

Compatible Vehicles

Cadillac

Escalade

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2002-2006 Cadillac Escalade Base AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Escalade ESV

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2003-2006 Cadillac Escalade ESV Base 4-Bolt Valve Housing; 4-Groove Pitman Arm

Escalade EXT

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2002-2006 Cadillac Escalade EXT Base 4-Bolt Valve Housing; 4-Groove Pitman Arm

Chevrolet

Avalanche 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2002-2006 Chevrolet Avalanche 1500 Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002 Chevrolet Avalanche 1500 LS 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002 Chevrolet Avalanche 1500 LT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2003 Chevrolet Avalanche 1500 North Face 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2006 Chevrolet Avalanche 1500 Z71 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2003 Chevrolet Avalanche 1500 WBH 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2005-2006 Chevrolet Avalanche 1500 LS 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2005-2006 Chevrolet Avalanche 1500 LT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Silverado 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
1999-2005 Chevrolet Silverado 1500 Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
1999-2006 Chevrolet Silverado 1500 LS 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
1999-2006 Chevrolet Silverado 1500 LT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2004 Chevrolet Silverado 1500 WT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2003-2005 Chevrolet Silverado 1500 SS AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2004-2006 Chevrolet Silverado 1500 Hybrid 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 Chevrolet Silverado 1500 WT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Suburban 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2000-2001 Chevrolet Suburban 1500 Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 Chevrolet Suburban 1500 LS 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 Chevrolet Suburban 1500 LT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2004-2006 Chevrolet Suburban 1500 Z71 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 Chevrolet Suburban 1500 Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 Chevrolet Suburban 1500 LTZ AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Tahoe

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2000-2001 Chevrolet Tahoe Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 Chevrolet Tahoe LS 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 Chevrolet Tahoe LT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2003-2006 Chevrolet Tahoe Z71 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 Chevrolet Tahoe Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

GMC

Sierra 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
1999-2003 GMC Sierra 1500 SL 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
1999-2006 GMC Sierra 1500 SLE 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
1999-2006 GMC Sierra 1500 SLT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2001 GMC Sierra 1500 C3 AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2005 GMC Sierra 1500 Base 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2006 GMC Sierra 1500 Denali AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002 GMC Sierra 1500 HT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2002-2006 GMC Sierra 1500 WT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2005-2006 GMC Sierra 1500 Hybrid 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 GMC Sierra 1500 SL 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Yukon

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2000-2006 GMC Yukon SLE 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 GMC Yukon SLT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2001-2006 GMC Yukon Denali AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 GMC Yukon SL 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Yukon XL 1500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2000-2006 GMC Yukon XL 1500 SLE 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2000-2006 GMC Yukon XL 1500 SLT 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2001-2006 GMC Yukon XL 1500 Denali AWD 4-Bolt Valve Housing; 4-Groove Pitman Arm
2006 GMC Yukon XL 1500 SL 4WD 4-Bolt Valve Housing; 4-Groove Pitman Arm

Warranty

LIFETIME WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by Lifetime Warranty Warranty is effective from the date when we receive your old part (core unit); the old part must be sent to us within 45 days after delivery of the original purchase facilisis. CV Axles (Remanufactured): CV Axle Shaft Assemblies rebuilt from OEM Gear Boxes (Remanufactured): Gear Box Assemblies rebuilt from […]
