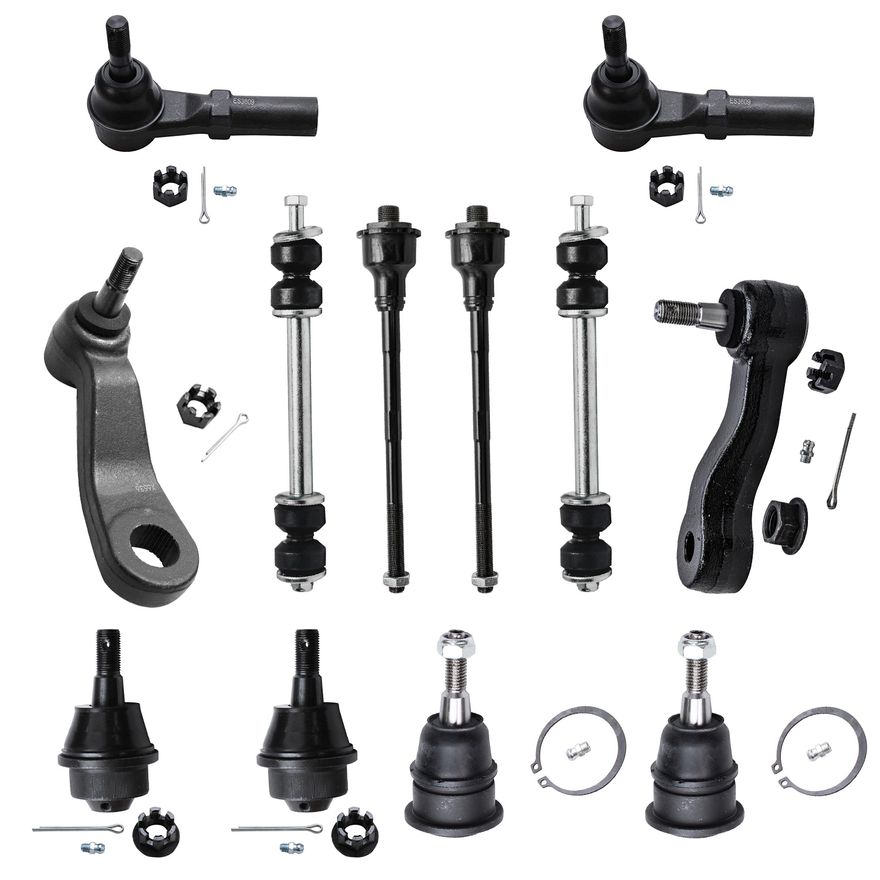

Main Image - Front Tie Rods Kit

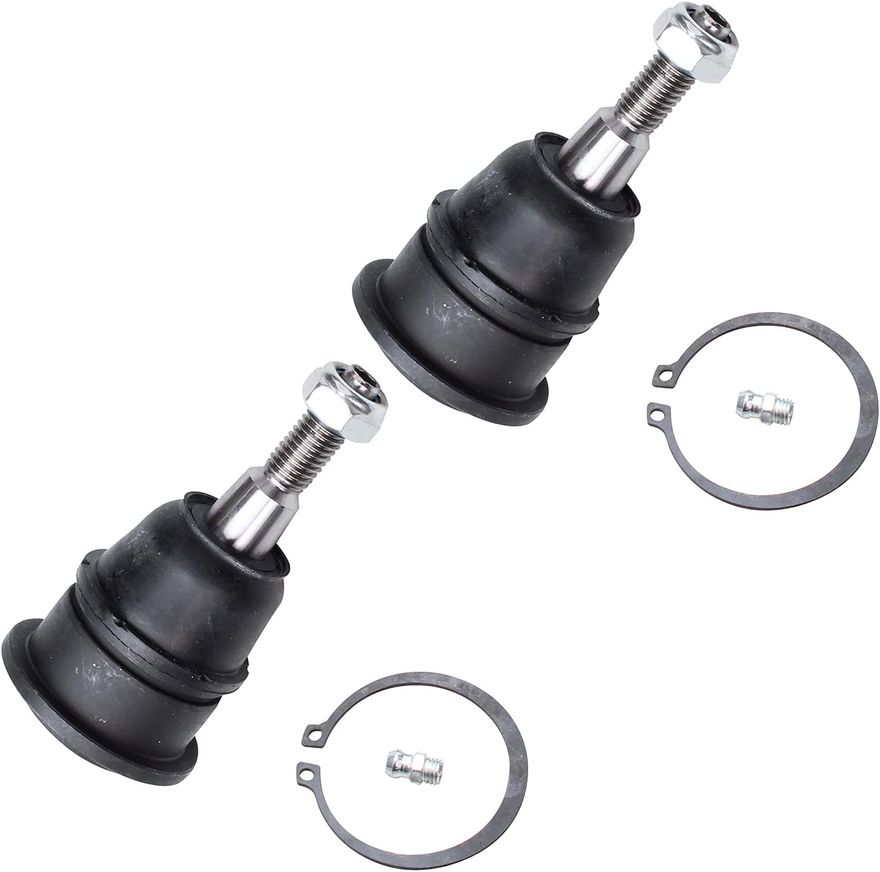

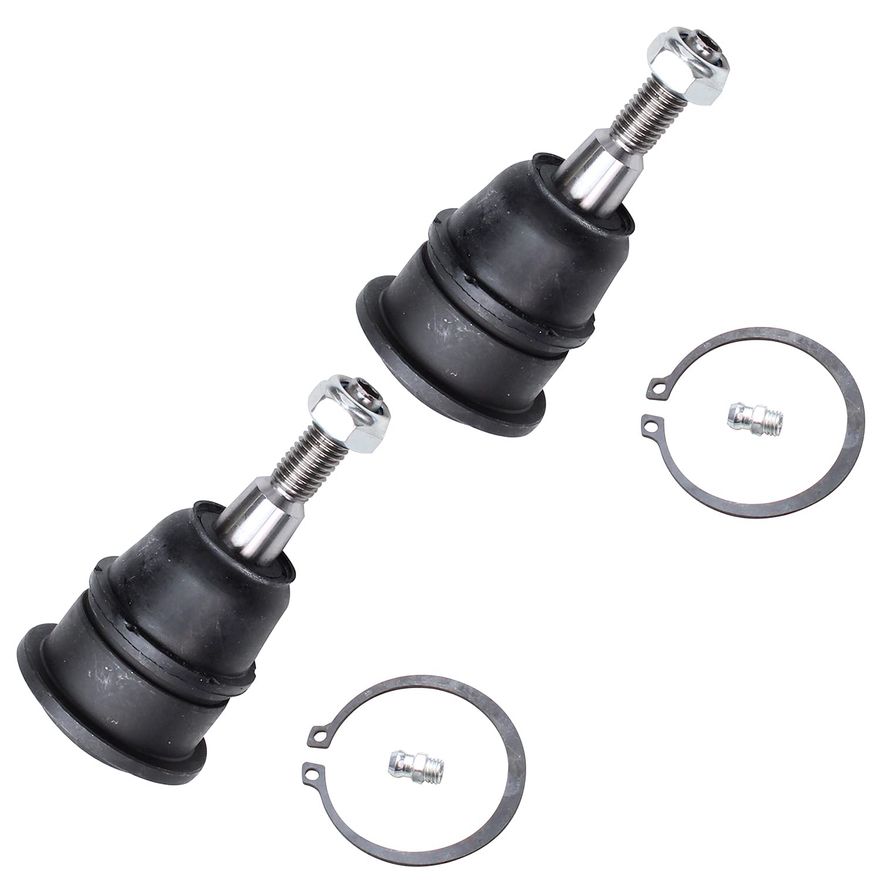

Front Upper Ball Joints - K6696 x2

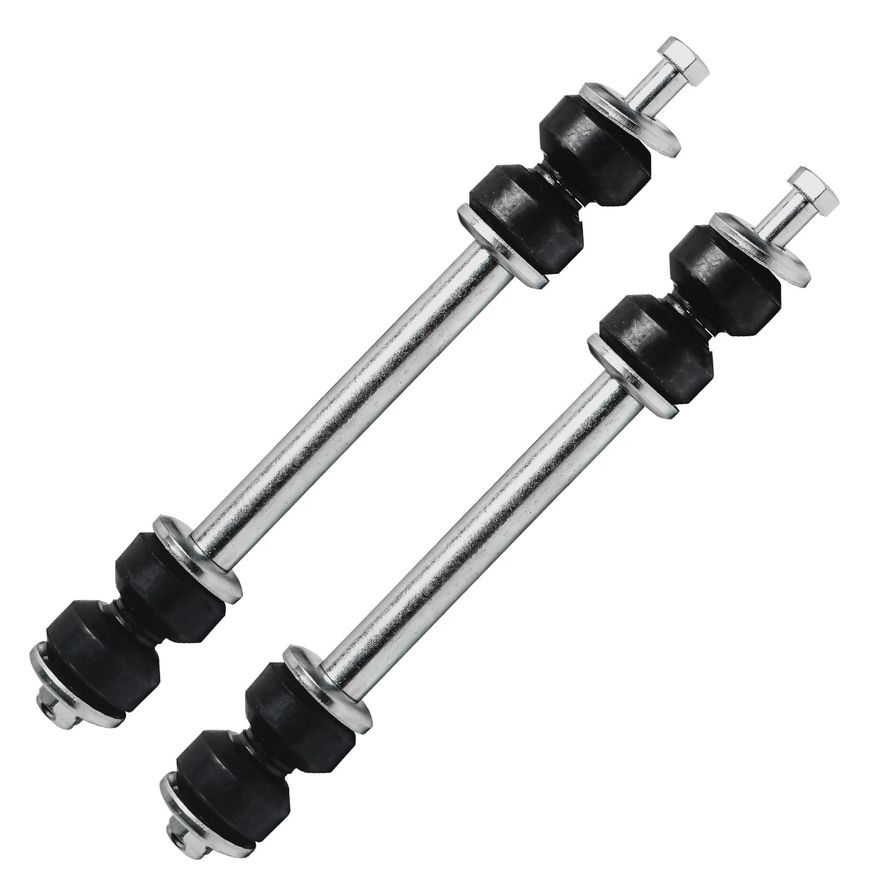

Front Sway Bars - K80631 x2
Front Lower Ball Joints - K6693 x2

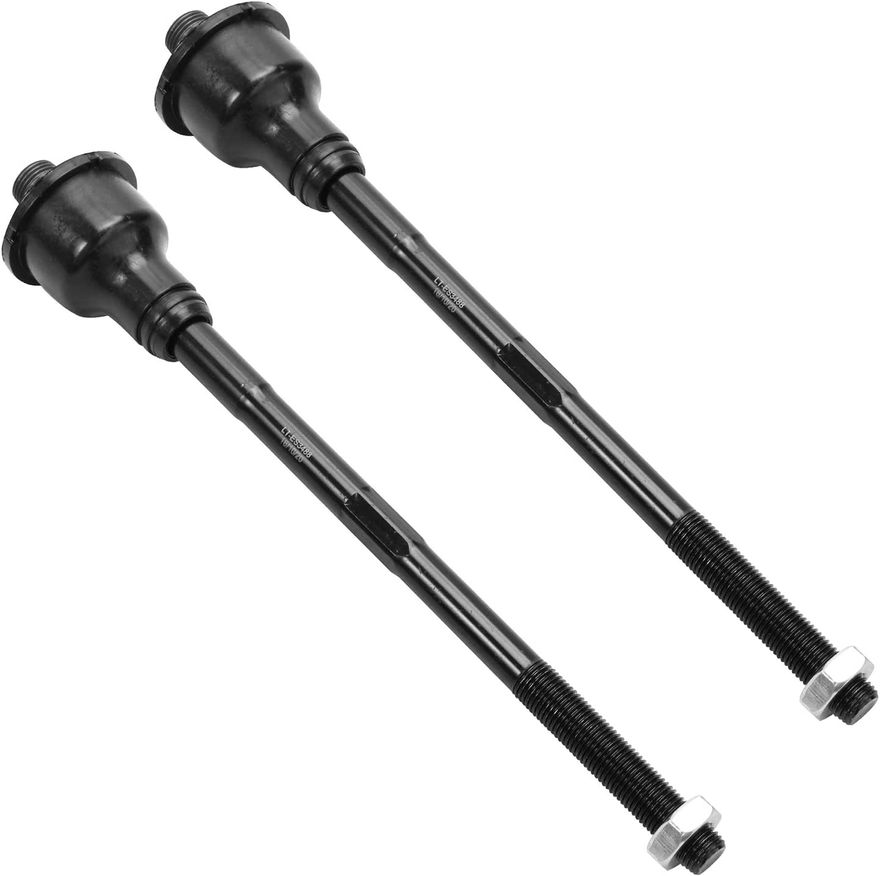

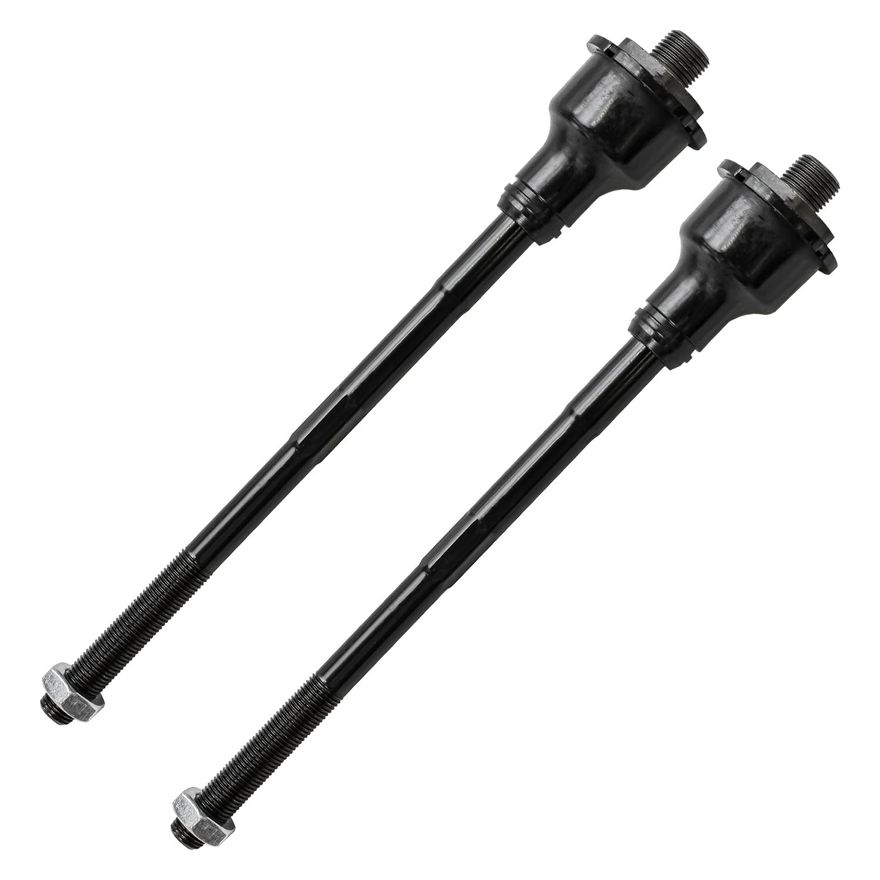

Front Inner Tie Rods - ES3488 x2

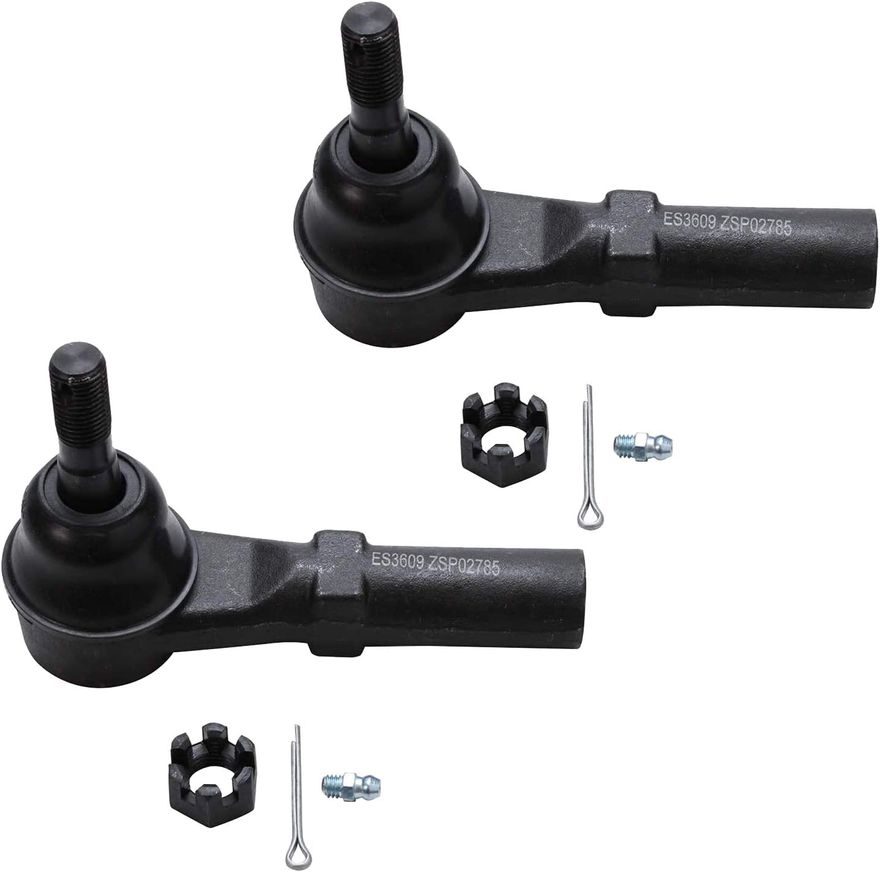

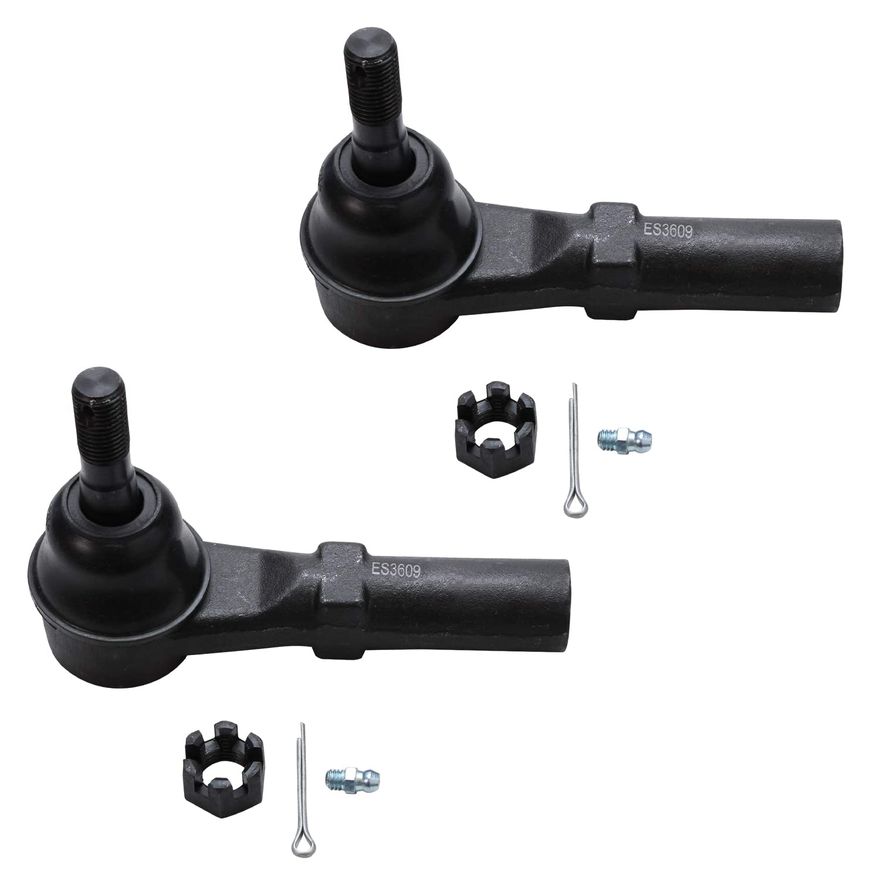

Front Outer Tie Rods - ES3609 x2

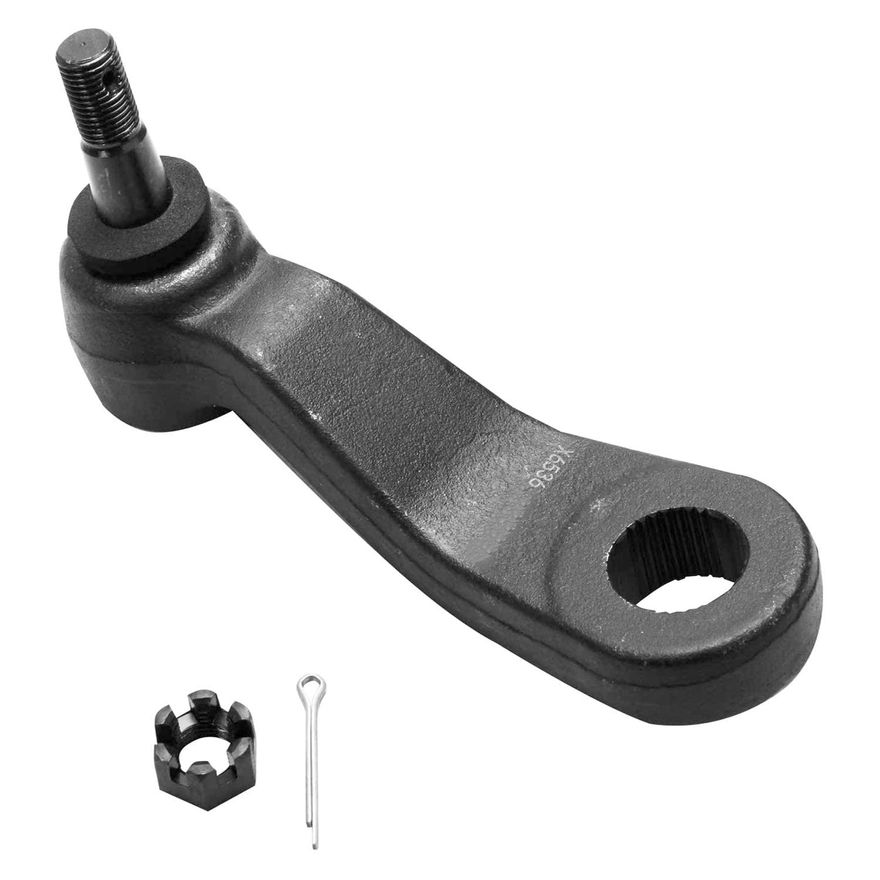

Front Pitman Arm - K6536

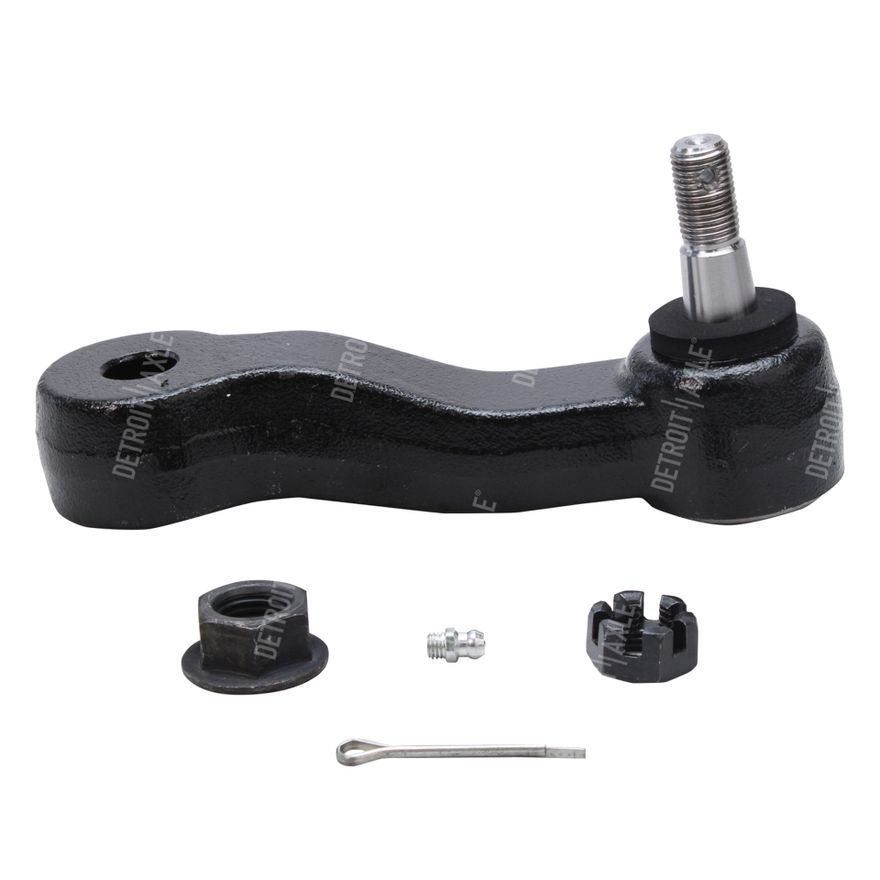

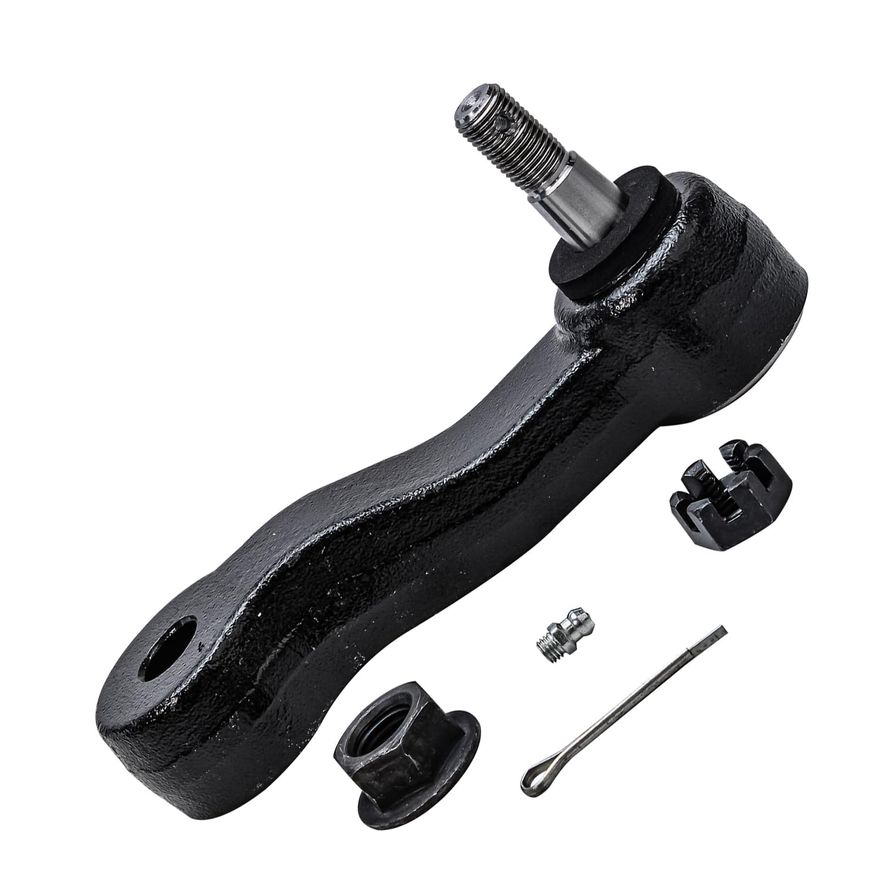

Front Idler Arm - K6535

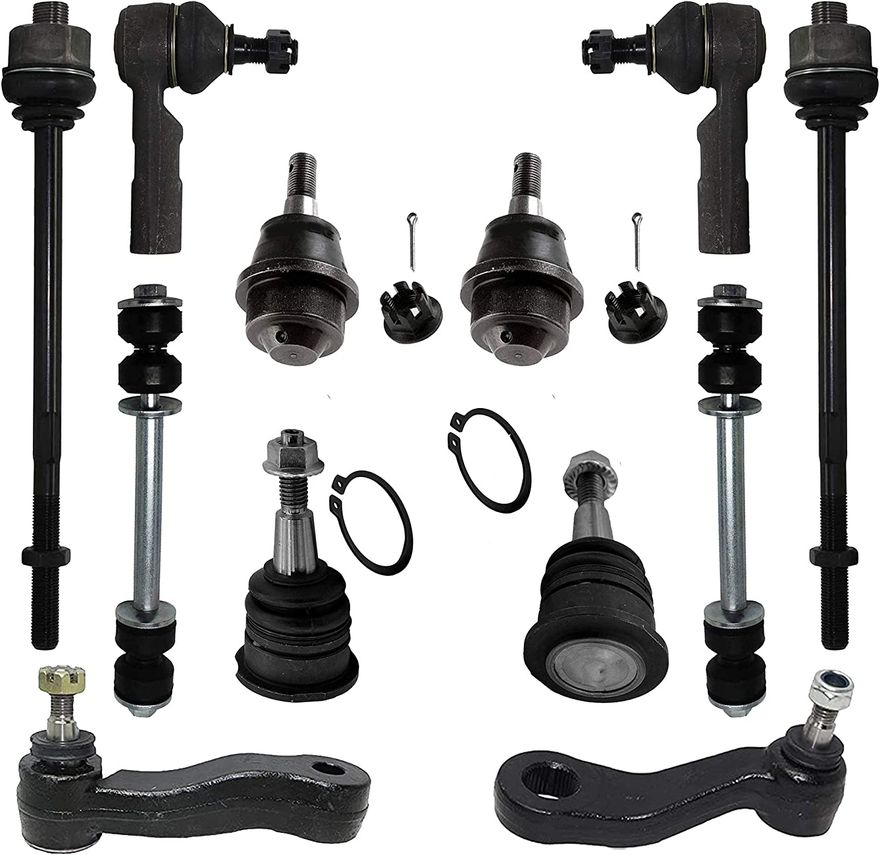

12pc Front Sway Bar Links Tie Rods Pitman and Idler Arms Suspension Kit

#80338-12

$124.93 $118.68

Estimated Delivery Saturday 24 January

Kit Component Parts

Quantity Name Part Number
2 Front Driver or Passenger Side Inner Tie Rod ES3488
2 Front Driver or Passenger Side Outer Tie Rod ES3609
1 Idler Arm K6535
1 Pitman Arm K6536
2 Front Driver or Passenger Side Lower Ball Joint K6693
2 Front Driver or Passenger Side Upper Ball Joint K6696
2 Front Driver or Passenger Side Sway Bar Link K80631

Specifications & Details

Specifications:

Brand: Detroit Axle
Weight: 16 lbs
Dimensions: 16 × 6 × 12 in

Details:

  • Built under strict quality control standards; Tested for impact| wear and fatigue to ensure quality and durability; Manufactured in ISO9002 Certified facility
  • Detroit Axle Suspension components are ready to meet the rigorous demands of today's foreign and domestic passenger cars| trucks| and SUVs

Compatible Vehicles

Chevrolet

Silverado 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2004 Chevrolet Silverado 2500 400 SS 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 Base 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2002 Chevrolet Silverado 2500 Cheyenne 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2002 Chevrolet Silverado 2500 Custom 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 LS 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 2500 LT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2004 Chevrolet Silverado 2500 WT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2005 Chevrolet Silverado 2500 HD Base 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 2500 HD LS 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2007 Chevrolet Silverado 2500 HD LT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2003-2007 Chevrolet Silverado 2500 HD WT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 Chevrolet Silverado 2500 HD LTZ 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Silverado 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2006 Chevrolet Silverado 3500 Base 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 Chevrolet Silverado 3500 HD 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 3500 LS 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 Chevrolet Silverado 3500 LT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2004 Chevrolet Silverado 3500 WT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 Chevrolet Silverado 3500 HD 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 Chevrolet Silverado 3500 WT 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Suburban 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001 Chevrolet Suburban 2500 Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2010 Chevrolet Suburban 2500 LS without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2010 Chevrolet Suburban 2500 LT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 Chevrolet Suburban 2500 LTZ without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2009-2010 Chevrolet Suburban 2500 Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

GMC

Sierra 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2002 GMC Sierra 2500 SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 GMC Sierra 2500 SLE without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2004 GMC Sierra 2500 SLT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2002-2004 GMC Sierra 2500 Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2003-2004 GMC Sierra 2500 WT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Sierra 2500 HD

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2002 GMC Sierra 2500 HD SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2010 GMC Sierra 2500 HD SLE without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2010 GMC Sierra 2500 HD SLT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2002-2005 GMC Sierra 2500 HD Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2003-2010 GMC Sierra 2500 HD WT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 GMC Sierra 2500 HD SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Sierra 3500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2002 GMC Sierra 3500 SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 GMC Sierra 3500 SLE without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 GMC Sierra 3500 SLT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2002-2005 GMC Sierra 3500 Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2004-2006 GMC Sierra 3500 WT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2006 GMC Sierra 3500 SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Sierra 3500 Classic

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2007 GMC Sierra 3500 Classic SL without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 GMC Sierra 3500 Classic SLE without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 GMC Sierra 3500 Classic SLT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 GMC Sierra 3500 Classic WT without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Yukon XL 2500

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2001-2006 GMC Yukon XL 2500 SLE 4WD without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2001-2006 GMC Yukon XL 2500 SLT 4WD without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Hummer

H2

Swipe left & right to view
additional chart details

Year Make Model Submodel Drive Type Note
2003-2007 Hummer H2 Base without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005-2007 Hummer H2 Adventure without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2005-2007 Hummer H2 Luxury without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering
2007 Hummer H2 Special Edition without Frame Bracket; 4-Groove Pitman Arm; Idler Arm Does Not Fit Models with Rack and Pinion Steering

Warranty

LIMITED 10 YEAR WARRANTY - SEE WARRANTY DOCUMENT FOR DETAILS

Parts Covered by 10-Year Warranty Warranty is effective from the delivery date of original purchase. Brakes: Brake Rotors & Drums CV Axles (Brand New): Brand New CV Axle Shaft Assemblies Racks & Pinions (Brand New): Brand New Rack & Pinion Assemblies Suspension: Adjusting Sleeves Ball Joints Center & Drag Links Control Arms Idler Arms Lateral […]
